Stepped Shaft vs. Plain Shaft: When to Choose Which?

Meta Description: Not sure whether a stepped shaft or a plain shaft is right for your application? A practical breakdown from Luoyang Hengchang Heavy Machinery.

A plain shaft (or straight shaft) is just a bar with one diameter end to end. Cheap to make, easy to source. Works great for simple motor drives, fans, and conveyors — anywhere you're just transmitting torque between two points

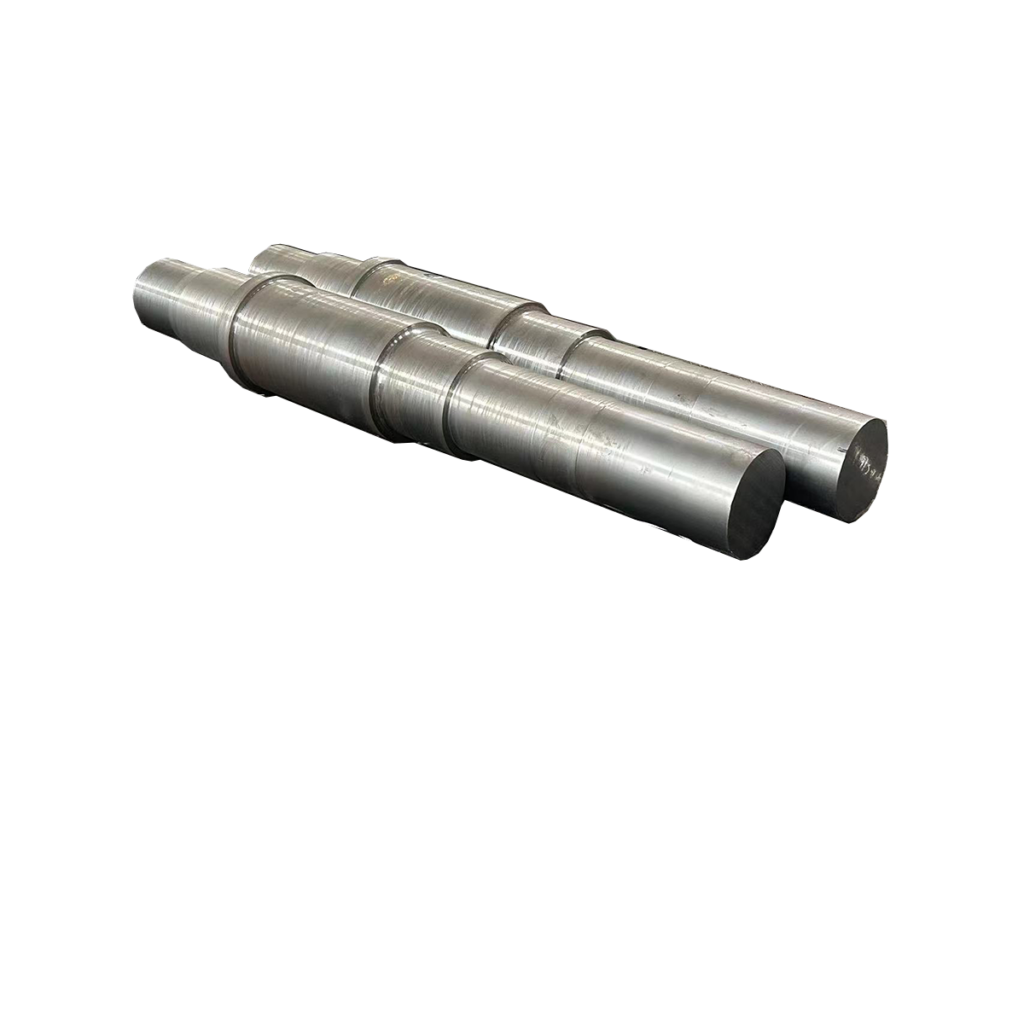

A stepped shaft has different diameters along its length. Each shoulder acts as a built-in stop for bearings, gears, or couplings, so components slide on and lock into position without extra spacers or collars. That's why you see them in gearboxes, pumps, compressors, and any machine where multiple parts need precise placement.

The Trade-Off in One Sentence

Plain shafts save you money on machining but cost you time in assembly. Stepped shafts cost more upfront but pay back in faster assembly, fewer parts, and better reliability — especially when the machine runs in a hard-to-reach place.

When to Pick Which

Go plain shaft when:

• One or two components to mount, and positioning isn't super critical.
• The shaft is short, loads are moderate, and you need it fast.
• Budget is tight and you can handle the extra assembly steps.

Go stepped shaft when:

• You're stacking two or more bearings, gears, or impellers that need exact axial location.
• The shaft handles combined bending + torsion, and you want material only where stress is highest.
• You need to absorb axial thrust without adding retaining rings or collars.
• The equipment runs somewhere expensive to service — wind turbines, mining drives, marine systems.

One Thing to Watch

The weak point on any stepped shaft is the fillet radius at each shoulder. A sharp corner there is a crack waiting to happen. A properly radiused transition, paired with the right heat treatment, can double fatigue life. This is where your supplier's experience matters — and why we at Luoyang Hengchang Heavy Machinery Co., Ltd. always match material grade and process to the actual load conditions, not just the print.

Bottom line: If the shaft just spins between two bearings, keep it simple. If it's carrying gears, bearings, and thrust loads all at once — the steps are worth every dollar

Need help deciding? Reach out to Luoyang Hengchang Heavy Machinery — we machine custom stepped shafts for mining, cement, wind power, and marine applications every day.
