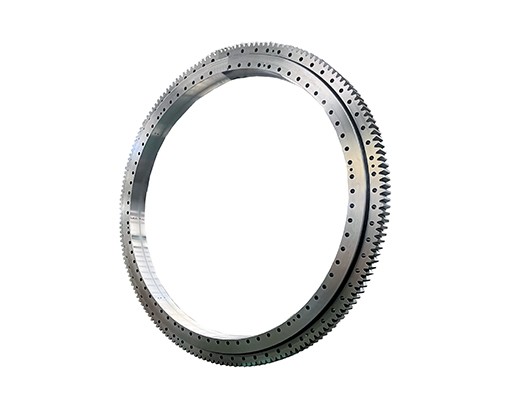

Three Row Roller Slewing Bearing

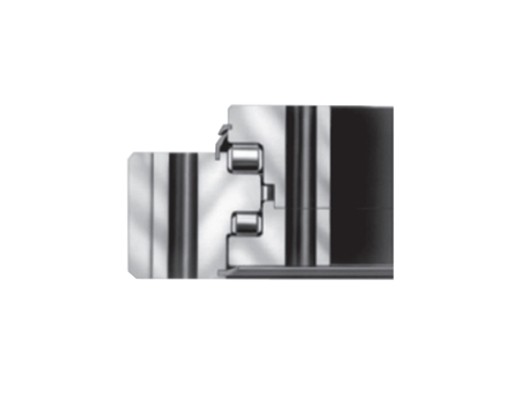

Three row roller slewing bearing have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately

Free Quote [email protected]

Advantages
Application

Description

Three row roller slewing bearing have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately. Being able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axial and radial dimensions and firm structure. It is especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret ,large tonnage truck crane and so on.

Technical Specifications

Three row roller slewing bearing (13 series)

Bearing type			Boundary dimensions			Mounting hole diameter				Structure dimensions					Gear parameters							Mass kg
Non gear type	External gear type	Internal gear type	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	m	Ext gear		Int gear		b	x
Non gear type	External gear type	Internal gear type	mm			mm		n	mm	mm				n3	m	Da mm	Z	da mm	Z	mm	x
130.25.500	131.25.500	133.25.500	634	366	148	598	402	24	18	537	526	32	10	2X4/M10X1	5	665	130	335	68	80	0.5	224
130.25.500	132.25.500	134.25.500	634	366	148	598	402	24	18	474	463	32	10	2X4/M10X1	6	666	108	336	57	80	0.5	224
130.25.560	131.25.560	133.25.560	694	426	148	658	462	24	18	597	586	32	10	2X4/M10X1	5	725	142	395	80	80	0.5	240
130.25.560	132.25.560	134.25.560	694	426	148	658	462	24	18	534	523	32	10	2X4/M10X1	6	726	118	396	67	80	0.5	240
130.25.630	131.25.630	133.25.630	764	496	148	728	532	28	18	667	656	32	10	2X4/M10X1	6	810	132	456	77	80	0.5	270
130.25.630	132.25.630	134.25.630	764	496	148	728	532	28	18	(604)	593	32	10	2X4/M10X1	8	808	98	456	58	80	0.5	270
130.25.710	131.25.710	133.25.710	844	576	148	808	612	28	18	747	736	32	10	2X4/M10X1	6	888	145	534	90	80	0.5	300
130.25.710	132.25.710	134.25.710	844	576	148	808	612	28	18	（684）	673	32	10	2X4/M10X1	8	888	108	536	68	80	0.5	300
130.32.800	131.32.800	133.32.800	964	636	182	920	680	36	22	841	830	32	10	2X4/M10X1	8	1008	123	592	75	120	0.5	500
130.32.800	132.32.800	134.32.800	964	636	182	920	680	36	22	(770）	759	40	10	2X4/M10X1	10	1010	98	590	60	120	0.5	500
130.32.900	131.32.900	133.32.900	1064	736	182	1020	780	36	22	941	930	40	10	2X4/M10X1	8	1104	135	688	87	120	0.5	600
130.32.900	132.32.900	134.32.900	1064	736	182	1020	780	36	22	(870）	(859）	40	10	2X5/M10X1	10	1110	108	690	70	120	0.5	600
130.32.1000	131.32.1000	133.32.1000	1164	836	182	1120	880	40	22	1041	1030	40	10	2X5/M10X1	10	1220	119	780	79	120	0.5	680
130.32.1000	132.32.1000	134.32.1000	1164	836	182	1120	880	40	22	(970）	(959）	40	10	2X5/M10X1	12	1224	99	780	66	120	0.5	680
130.32.1120	131.32.1120	133.32.1120	1284	956	182	1240	1000	40	22	1161	1150	40	10	2X5/M10X1	10	1340	131	900	91	120	0.5	820
130.32.1120	132.32.1120	134.32.1120	1284	956	182	1240	1000	40	22	(1090）	1079	40	10	2X5/M10X1	12	1344	109	900	76	120	0.5	820
130.40.1250	131.40.1250	133.40.1250	1445	1055	220	1393	1107	45	26	1300	1290	50	10	2X5/M10X1	12	1512	123	984	83	150	0.5	1200
130.40.1250	132.40.1250	134.40.1250	1445	1055	220	1393	1107	45	26	(1210）	1200	50	10	2X5/M10X1	14	1512	105	980	71	150	0.5	1200
130.40.1400	131.40.1400	133.40.1400	1595	1205	220	1543	1257	45	26	1450	1440	50	10	2X5/M10X1	12	1668	136	1140	96	150	0.5	1300
130.40.1400	132.40.1400	134.40.1400	1595	1205	220	1543	1257	45	26	(1360）	1350	50	10	2X5/M10X1	14	1666	116	1134	80	150	0.5	1300
130.40.1600	131.40.1600	133.40.1600	1795	1405	220	1743	1457	48	26	1650	1640	50	10	2X5/M10X1	14	1876	131	1330	96	150	0.5	1520
130.40.1600	132.40.1600	134.40.1600	1795	1405	220	1743	1457	48	26	(1560）	1550	50	10	2X5/M10X1	16	1872	114	1328	84	150	0.5	1520
130.40.1800	131.40.1800	133.40.1800	1995	1605	220	1943	1657	48	26	1850	1840	50	10	2X5/M10X1	14	2072	145	1526	110	150	0.5	1750
130.40.1800	132.40.1800	134.40.1800	1995	1605	220	1943	1657	48	26	1760	1750	50	10	2X5/M10X1	16	2080	127	1520	96	150	0.5	1750
130.45.2000	131.45.2000	133.45.2000	2221	1779	231	2155	1845	60	33	2055	2033	54	12	2X6/M10X1	16	2304	141	1696	107	160	0.5	2400
130.45.2000	132.45.2000	134.45.2000	2221	1779	231	2155	1845	60	33	(1967)	1945	54	12	2X6/M10X1	18	2304	125	1692	95	160	0.5	2400
130.45.2240	131.45.2240	133.45.2240	2461	2019	231	2395	2085	60	33	2295	2273	54	12	2X6/M10X1	16	2560	157	1920	121	160	0.5	2700
130.45.2240	132.45.2240	134.25.2240	2461	2019	231	2395	2085	60	33	2207	2185	54	12	2X6/M10X1	18	2556	139	1926	108	160	0.5	2700
130.45.2500	131.45.2500	133.45.2500	2721	2279	231	2655	2345	72	33	2555	2533	54	12	2X8/M10X1	18	2826	154	2178	122	160	0.5	3000
130.45.2500	132.45.2500	134.45.2500	2721	2279	231	2655	2345	72	33	2467	2445	54	12	2X8/M10X1	20	2820	138	2180	110	160	0.5	3000
130.45.2800	131.45.2800	133.45.2800	3021	2579	231	2955	2645	72	33	2855	2833	54	12	2X8/M10X1	18	3114	170	2484	139	160	0.5	3400
130.45.2800	132.45.2800	134.45.2800	3021	2579	231	2955	2645	72	33	2767	2745	54	12	2X8/M10X1	20	3120	153	2480	125	160	0.5	3400
130.50.3150	131.50.3150	133.50.3150	3432	2868	270	3342	2958	72	45	3213	3196	65	12	2X8/M10X1	20	3540	174	2760	139	180	0.5	5000
130.50.3150	132.50.3150	134.50.3150	3432	2868	270	3342	2958	72	45	3104	3087	65	12	2X8/M10X1	22	3542	158	2750	126	180	0.5	5000
130.50.3550	131.50.3550	133.50.3550	3832	3268	270	3742	3358	72	45	3613	3596	65	12	2X8/M10X1	20	3940	194	3160	159	180	0.5	5600
130.50.3550	132.50.3550	134.50.3550	3832	3268	270	3742	3358	72	45	3504	3487	65	12	2X8/M10X1	22	3938	176	3146	144	180	0.5	5600
130.50.4000	131.50.4000	133.50.4000	4282	3718	270	4192	3808	80	45	4063	4046	65	12	2X8/M10X1	22	4400	197	3608	165	180	0.5	6400
130.50.4000	132.50.4000	134.50.4000	4282	3718	270	4192	3808	80	45	3954	3937	65	12	2X8/M10X1	25	4400	173	3600	145	180	0.5	6400
130.50.4500	131.50.4500	133.50.4500	4782	4218	270	4692	4308	80	45	4563	4546	65	12	2X8/M10X1	22	4906	220	4114	188	185	0.5	6942
130.50.4500	132.50.4500	134.50.4500	4782	4218	270	4692	4308	80	45	4454	4437	65	12	2X8/M10X1	25	4900	193	4100	165	185	0.5	6942
