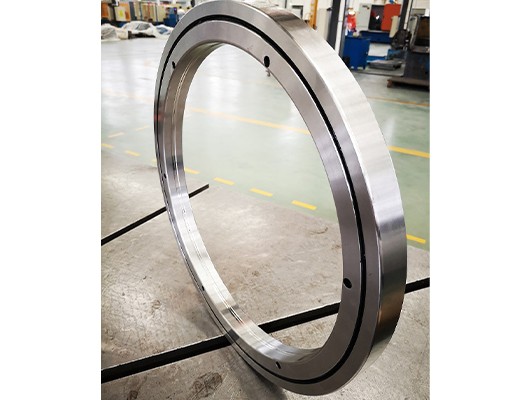

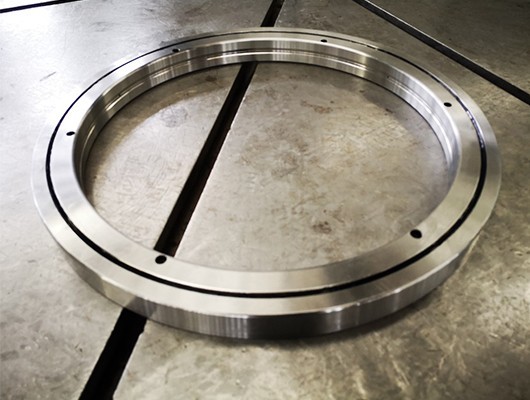

RE Series Crossed Roller Bearing

RE standard type is an innovative bearing based on the design of the RB standard type bearing. The inner ring is separable while the outer ring is integrated into the main body. It is used in cases where the high rotational accuracy of the outer ring is required.

Free Quote [email protected]

Advantages
Application

Description

Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.The crossed roller bearing has high precision, and because the spacer is installed between the vertically arranged rollers, it prevents the rollers from falling over or the rollers rubbing against each other, so it can prevent the increase of the rotational torque. In addition, compared with conventional types using iron plate cages, one side of the rollers does not come into contact or lock up. Stable rotational motion can be obtained even when a preload is applied. And since the inner ring or the outer ring is divided into two parts, the preload can be adjusted, so the rotational motion can be obtained.

(Separable Outer Ring Type for Inner Ring Rotation)

Technical Specifications

LYHGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

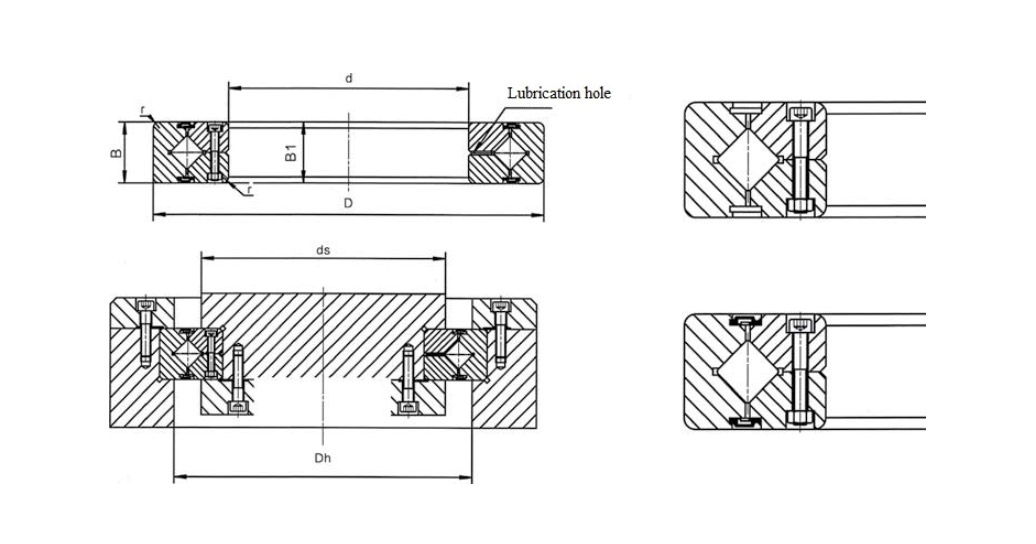

TYPE	Inner diameter	Outer diameter	Pitch diameter	Height	Chamfer	Shoulder size		Basic rated load(Radial)		Weight
TYPE	d	D	Dpw	B	r	ds	Dh	Cr Kn	Cor Kn	KG
RE 2008	20	36	29	8	0.5	23.5	30.5	3.23	3.1	0.04
RE 2508	25	41	34	8	0.5	28.5	35.5	3.63	3.83	0.05
RE 3010	30	55	43.5	10	0.6	37	47	7.35	8.36	0.12
RE 3510	35	60	48.5	10	0.6	41	51.5	7.64	9.12	0.13
RE 4010	40	65	53.5	10	0.6	47.5	58	8.33	10.6	0.16
RE 4510	45	70	58.5	10	0.6	51	61.5	8.62	11.3	0.17
RE 5013	50	80	66	13	0.6	57.5	72	16.7	20.9	0.27
RE 6013	60	90	76	13	0.6	68	82	18	24.3	0.3
RE 7013	70	100	86	13	0.6	78	92	19.4	27.7	0.35
RE 8016	80	120	101.4	16	0.6	91	111	30.1	42.1	0.7
RE 9016	90	130	112	16	1	98	118	31.4	45.3	0.75
RE 10016	100	140	121.1	16	1	109	129	31.7	48.6	0.83
RE 10020	100	150	127	20	1	113	133	33.1	50.9	1.45
RE 11012	110	135	123.3	12	0.6	117	127	12.5	24.1	0.4
RE 11015	110	145	129	15	0.6	122	136	23.7	41.5	0.75
RE 11020	110	160	137	20	1	120	140	34	54	1.56
RE 12016	120	150	136	16	0.6	127	141	24.2	43.2	0.72
RE 12025	120	180	152	25	1.5	133	164	66.9	100	2.62
RE 13015	130	160	146	15	0.6	137	152	25	46.7	0.72
RE 13025	130	190	162	25	1.5	143	174	69.5	107	2.82
RE 14016	140	175	160	16	1	147	162	25.9	50.1	1
RE 14025	140	200	172	25	1.5	154	185	74.8	121	2.96
RE 15013	150	180	166	13	0.6	158	172	27	53.5	0.68
RE 15025	150	210	182	25	1.5	164	194	76.8	128	3.16
RE 15030	150	230	192	30	1.5	173	210	100	156	5.3
RE 16025	160	220	192	25	1.5	173	204	81.7	135	3.14
RE 17020	170	220	196.1	20	1.5	184	198	29	62.1	2.21
RE 18025	180	240	210	25	1.5	195	225	84	143	3.44
RE 189025	190	240	219	25	1	202	222	41.7	82.9	2.99
RE 20025	200	260	230	25	2	215	245	84.2	157	4
RE 20030	200	280	240	30	2	221	258	114	200	6.7
RE 20035	200	295	247.7	35	2	225	270	151	252	9.6
RE 22025	220	280	250.1	25	2	235	265	92.3	171	4.1
RE 24025	240	300	272.5	25	2.5	256	281	68.3	145	4.5
RE 25025	250	310	280.9	25	2.5	268	293	69.3	150	5
RE 25030	250	330	287.5	30	2.5	269	306	126	244	8.1
RE 25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RE 30025	300	360	332	25	2.5	319	344	75.5	178	5.9
RE 30035	300	395	345	30	2.5	322	368	183	367	13.4
RE 30040	300	405	351.6	40	2.5	326	377	212	409	17.2
RE 35020	350	400	376.6	20	2.5	363	383	54.1	143	3.9
RE 40035	400	480	440.3	35	2.5	422	459	156	370	14.5
RE 40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RE 45025	450	500	476.6	25	1	464	484	61.7	182	6.6
RE 50025	500	550	526.6	25	1	514	534	65.5	201	7.3
RE 50040	500	600	548.8	40	2.5	526	572	239	607	26
RE 50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RE 60040	600	700	650	40	3	627	673	264	721	29
