Tower Crane Slewing Ring

Overview

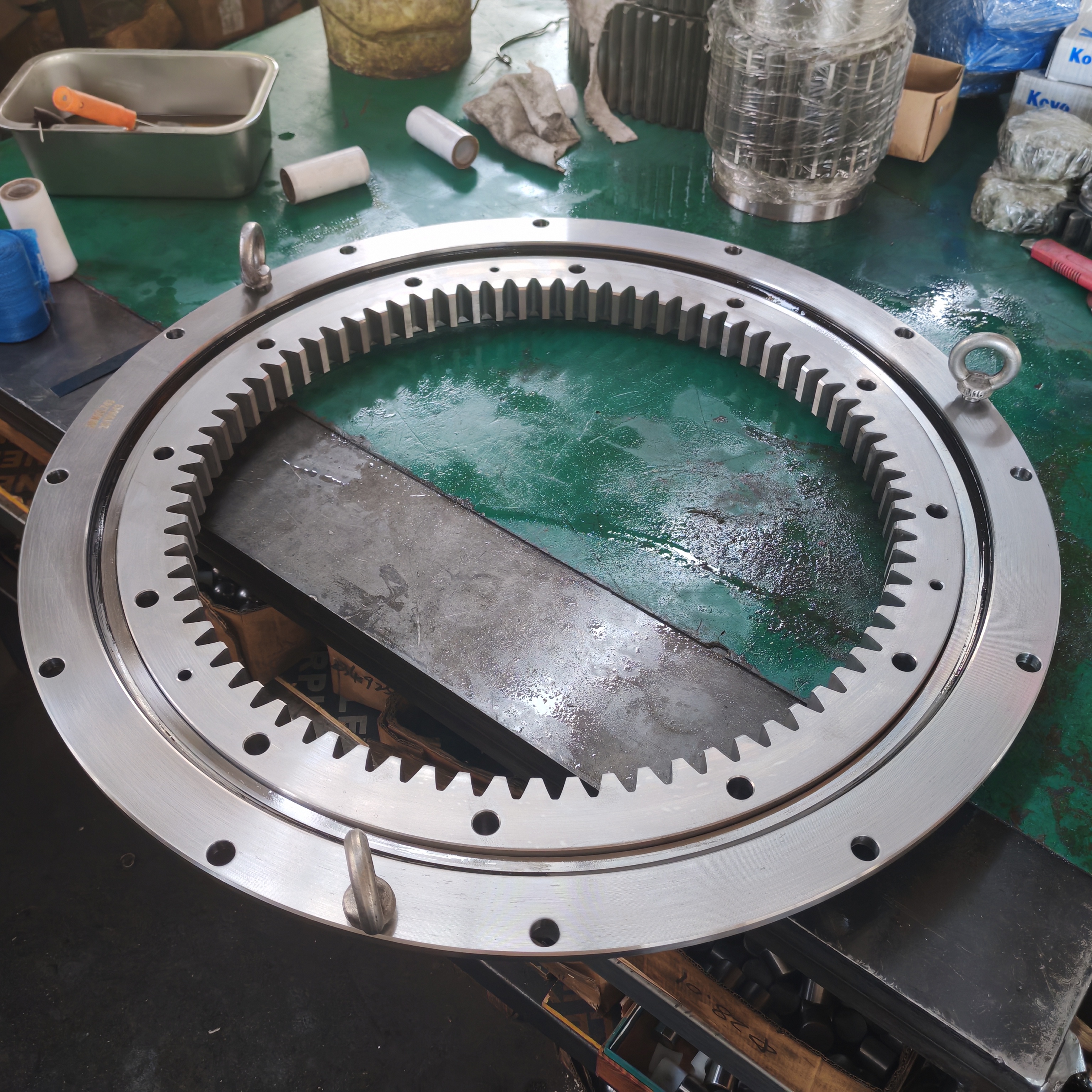

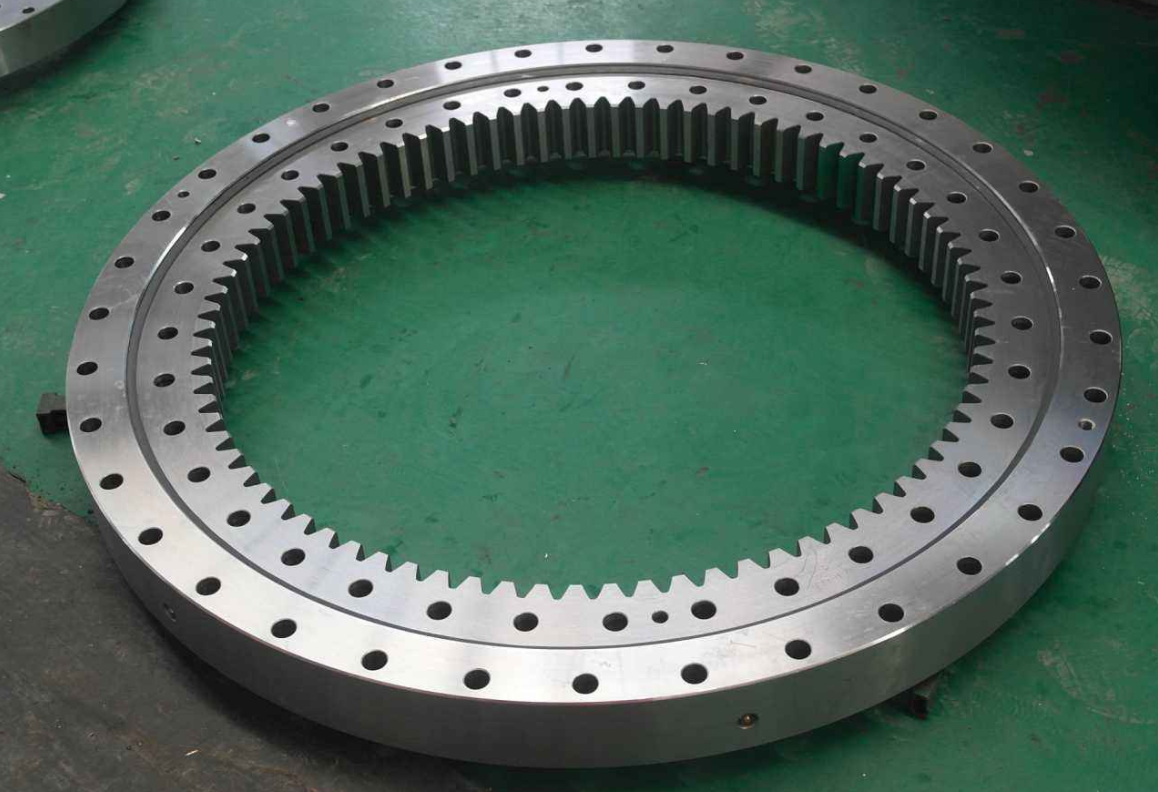

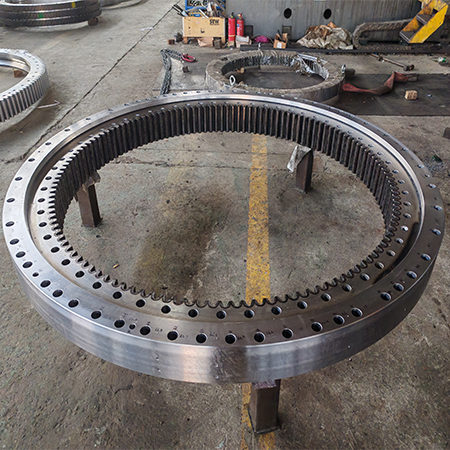

The Tower Crane Slewing Ring (also known as a swing bearing or turntable bearing) is the most critical structural component of a tower crane. It connects the upper revolving structure to the fixed lower tower, bearing the entire weight of the jib, counter-jib, and the heavy loads being lifted.

Because tower cranes operate at significant heights and are subject to extreme tilting moments and wind forces, our slewing rings are engineered for maximum safety, high load capacity, and long-term durability in harsh construction environments.

Key Features & Performance Advantages

1. High-Strength Forged Materials

We use premium 42CrMo (Quenched and Tempered) or 50Mn forged steel. These materials offer the optimal balance of surface hardness and core toughness, preventing cracks and structural failure under the repetitive stress of heavy lifting.

2. Precision Gear Hardening

The gears (usually external) are a tower crane's primary drive point. Our gears undergo advanced induction hardening, typically reaching 50-55 HRC, to ensure high wear resistance and prevent tooth breakage during high-torque slewing operations.

3. Safety First: Rigorous Testing

Safety is non-negotiable in crane operations. Every slewing ring undergoes:

• Ultrasonic Testing (UT) for internal material flaws.
• Magnetic Particle Testing (MT) for surface cracks.
• Non-Destructive Testing (NDT) to ensure weld and raceway integrity.

4. Extreme Weather Resistance

Equipped with high-performance multi-lip seals (NBR) and specialized low-temperature grease, our bearings operate reliably in environments ranging from scorching desert heat to freezing arctic temperatures.

Technical Specifications

Maintenance & Longevity Tips

To maximize the service life of your tower crane slewing gear, we recommend:

1. Regular Lubrication: Grease the raceways and gears every 100-150 operating hours.
2. Bolt Tension Checks: Periodically verify the torque of the mounting bolts to prevent uneven stress distribution.
3. Gear Backlash Inspection: Monitor the clearance between the pinion and the slewing ring teeth to ensure smooth engagement.

Why Choose Us?

• Expert Engineering: Over 20 years of experience in heavy-duty slewing ring manufacturing.
• Short Lead Times: We maintain a stock of common sizes for urgent crane repairs.
• Global Delivery: Secure packaging and optimized shipping to construction sites worldwide.

Keep your construction projects moving safely. Contact our technical team today for a quote or a detailed compatibility analysis for your tower crane!
