Large ring gear herringbone gear manufacturing

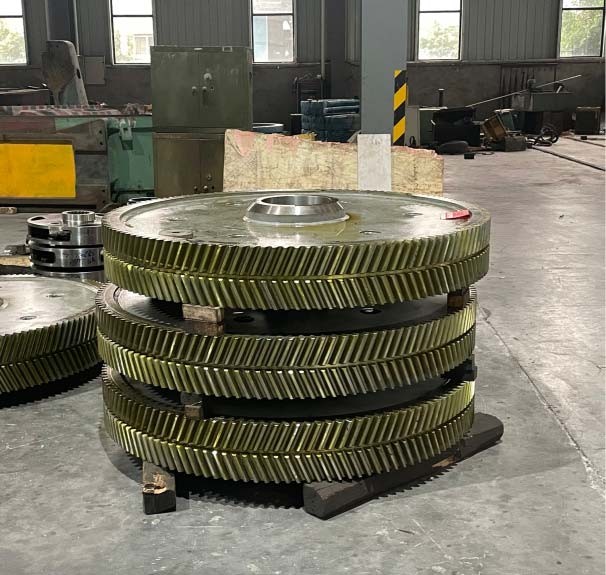

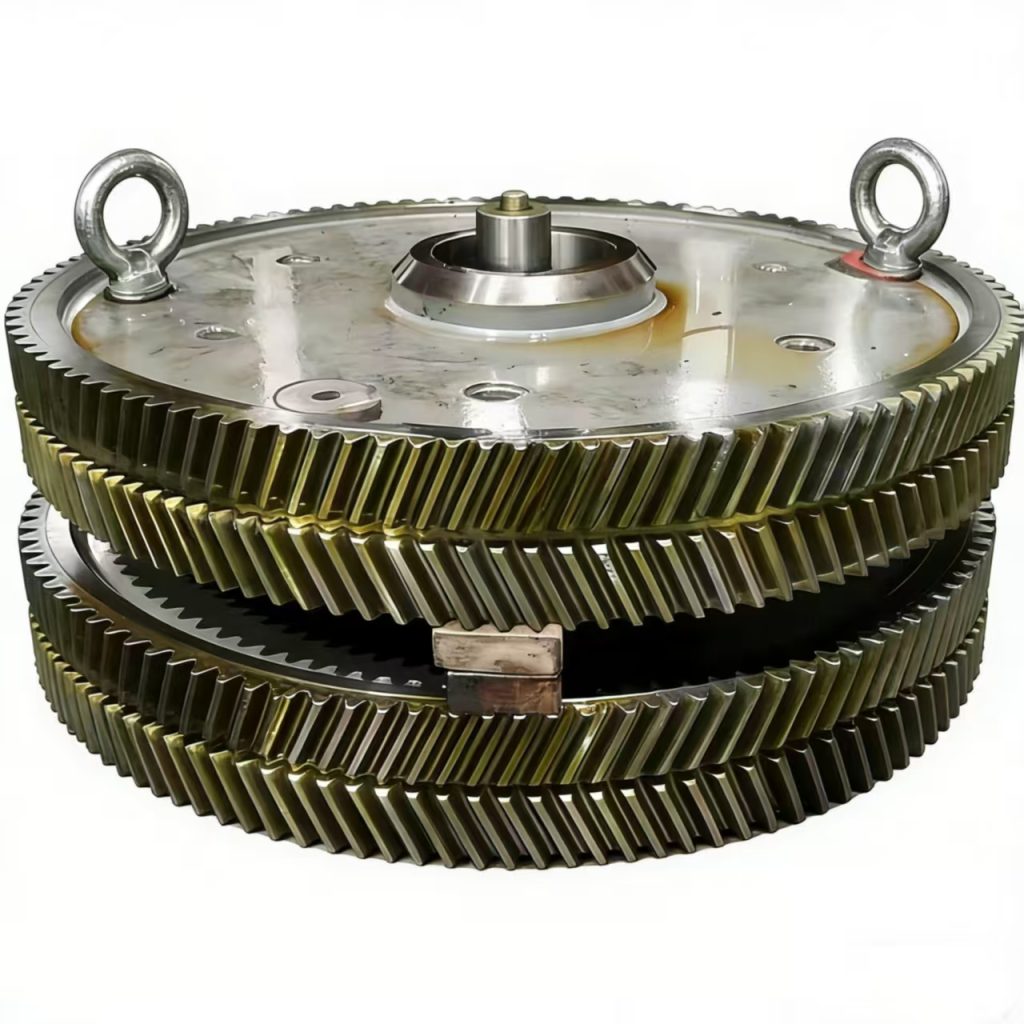

Large ring gear herringbone gear manufacturing is a complex and precise project, and it is widely used in various mechanical equipment. This kind of gear consists of a large circular gear and a small circular gear, and its shape is like the arrangement of human teeth.

When manufacturing a large ring gear herringbone gear, you first need to select a suitable material, which is usually a high-quality metal material, such as steel, copper, etc. The key to material selection is to ensure the strength and durability of the gear.

Next comes the process of making the gears. First, the blanks of the large ring gear and small circular gear need to be cast. This step is critical to ensure the quality and dimensional accuracy of the blank. The blank is then subjected to turning and grinding processes to obtain the precise dimensions and smooth surface of the gear.

In the process of manufacturing the large ring gear herringbone gear, heat treatment is also required. Heat treatment can enhance the hardness and strength of gears and increase their service life. This step requires mastering the appropriate heat treatment temperature and time to avoid quality problems caused by excessive or insufficient heat treatment.

Finally, precision gear fit and assembly is required. The tooth grooves of the large ring gear and the small circular gear must be accurately matched to ensure the stable operation of the gears and the efficiency of power transmission. During assembly, special tools and equipment are required to ensure assembly accuracy and stability.
